KH187R97DT132MC4詳細信息
KH187R97DT132MC4
關鍵詞：0.18KW傘齒輪減速機_KH187R97DT132MC4_KH187R97DRE90L4
KH187R97DT132MC4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| KH187R97DT132MC4 | 1196 | 7.5KW | 1.20r/min | 53600N.m | 1,874kg | 190000N | 0.95 |
| KH187R97DT132MC4 | 1046 | 7.5KW | 1.40r/min | 46800N.m | 1,874kg | 190000N | 1.05 |
| KH187R97DT132MC4 | 945 | 7.5KW | 1.60r/min | 42300N.m | 1,874kg | 190000N | 1.20 |
| KH187R97DT132MC4 | 738 | 7.5KW | 2.00r/min | 33000N.m | 1,874kg | 190000N | 1.50 |
| KH187R97DT132MC4 | 621 | 7.5KW | 2.40r/min | 27700N.m | 1,874kg | 190000N | 1.80 |
| KH187R97DT132MC4 | 527 | 7.5KW | 2.80r/min | 23400N.m | 1,874kg | 190000N | 2.10 |
KH187R97DRE90L4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| KH187R97DRE90L4 | 6747 | 1.5KW | 0.21r/min | 59800N.m | 1,824kg | 190000N | 0.85 |
| KH187R97DRE90L4 | 5991 | 1.5KW | 0.24r/min | 52800N.m | 1,824kg | 190000N | 0.95 |
| KH187R97DRE90L4 | 5358 | 1.5KW | 0.27r/min | 46900N.m | 1,824kg | 190000N | 1.05 |
| KH187R97DRE90L4 | 4817 | 1.5KW | 0.30r/min | 41800N.m | 1,824kg | 190000N | 1.20 |
| KH187R97DRE90L4 | 4370 | 1.5KW | 0.33r/min | 37900N.m | 1,824kg | 190000N | 1.30 |
| KH187R97DRE90L4 | 3609 | 1.5KW | 0.40r/min | 32500N.m | 1,824kg | 190000N | 1.55 |
| KH187R97DRE90L4 | 3062 | 1.5KW | 0.47r/min | 27500N.m | 1,824kg | 190000N | 1.80 |
| KH187R97DRE90L4 | 2519 | 1.5KW | 0.57r/min | 22400N.m | 1,824kg | 190000N | 2.20 |
| KH187R97DRE90L4 | 2268 | 1.5KW | 0.63r/min | 20000N.m | 1,824kg | 190000N | 2.50 |
KH187R97DT132MC4減速機類型：

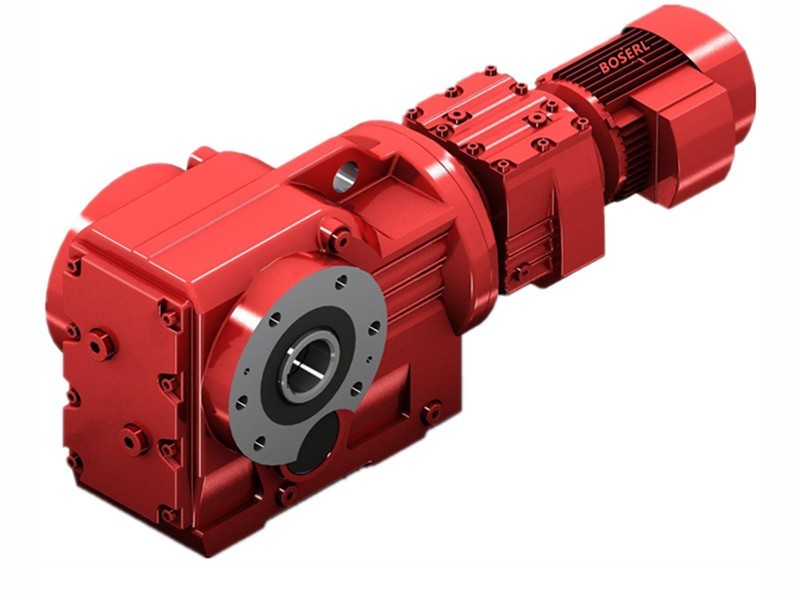

K187R97DT132MC4底腳安裝斜齒輪—傘齒輪減速電機
KA187BR97DT132MC4底腳空心軸安裝斜齒輪—傘齒輪減速電機
KV187BR97DT132MC4底腳花鍵空心軸安裝斜齒輪—傘齒輪減速電機
KH187BR97DT132MC4底腳空心軸鎖緊盤安裝斜齒輪—傘齒輪減速機
KF187R97DT132MC4B5法蘭安裝斜齒輪—傘齒輪減速電機
KAF187R97DT132MC4B5法蘭空心軸安裝斜齒輪—傘齒輪減速電機
KVF187R97DT132MC4B5法蘭花鍵空心軸安裝斜齒輪—傘齒輪減速電機
KHF187R97DT132MC4B5法蘭空心軸鎖緊盤安裝斜齒輪—傘齒輪減速電機
KA187R97DT132MC4空心軸斜齒輪─傘齒輪減速電機
KV187R97DT132MC4花鍵空心軸安裝斜齒輪—傘齒輪減速電機
KH187R97DT132MC4空心軸鎖緊盤斜齒輪─傘齒輪減速電機
KT187R97DT132MC4空心軸安裝斜齒輪—傘齒輪減速電機
KAZ187R97DT132MC4B14法蘭空心軸安裝斜齒輪─傘齒輪減速電機
KVZ187R97DT132MC4B14法蘭花鍵空心軸安裝斜齒輪—傘齒輪減速電機
KHZ187R97DT132MC4B14法蘭空心軸鎖緊盤安裝斜齒輪—傘齒輪減速電機

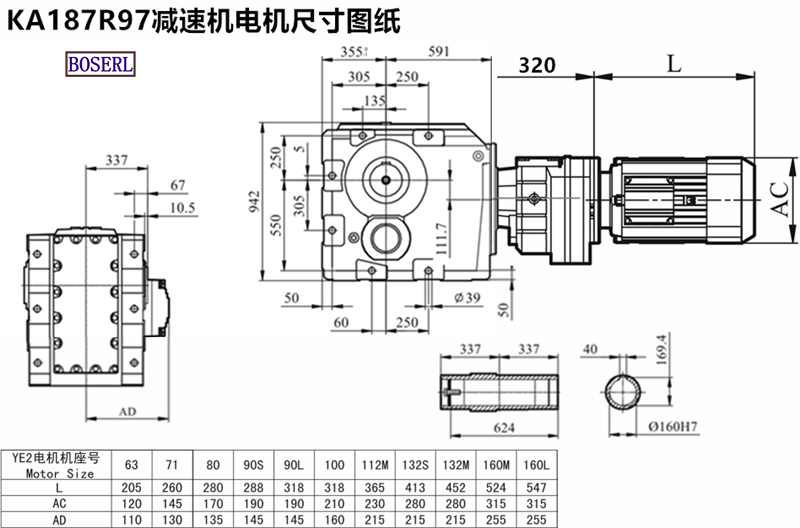

KH187R97DT132MC4減速機馬達安裝尺寸圖紙
KH187R97DT132MC4減速機電機生產廠家，看廠請?zhí)崆叭祛A(yù)約大減速比減速機
關鍵詞:KAF系列減速機_大減速比減速機與電機_大速比減速機電機一套_大減速比減速器_大比數減速機_大比數減速器_大速比減速器生產廠家
KAF系列減速機型號：KAF37減速機,KAF47減速機,KAF57減速機,KAF67減速機,KAF77減速機,KAF87減速機,KAF97減速機,KAF107減速機,KAF127減速機,KAF157減速機,KAF167減速機,KAF187減速機
KAF系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-200KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: 0.18KW傘齒輪減速機 KH187R97DT132MC4 KH187R97DRE90L4
